New
generation drilling machine with electric rotation and
hydraulic advancement; it is particularly suitable for
the execution of holes for the passage of the quarry wire
on marble and stone materials. It is manufactured with
robust sheets on steel guides painted with last-generation
high strength paints. All the mechanical, hydraulic components
and the special engine are of high quality. It’s
suitable for vertical, horizontal and sloped perforations
on marble. It has been designed to avoid twisting during
work that generates excessive loads on the motor axis
and with hydraulic thrust safety to better manage the
workflow and to avoid breaks in the diamond tip. Drill
hole diameter 60 mm and 83 mm with diamond tip.
TECHNICAL
DATA
7500w 8 HP 3 speed
380V 50Hz motor
Electro-hydraulic unit with 120bar operating pressure
HP2 380V 50Hz motor
Low voltage control panel
Standard
equipment:
Anchorage kit with chains and tie rods, service keys,
hydraulic hose clamp.
n.10 tubes dia.54 x1000 mm., conical thread (dia.76 x
1000 mm.)

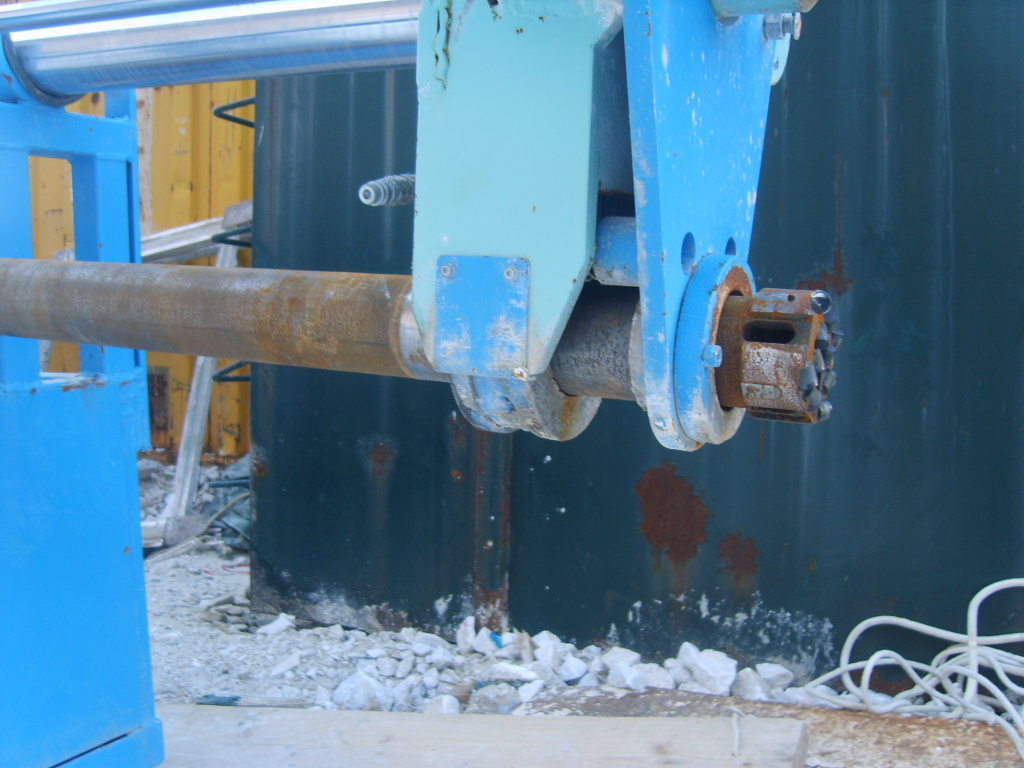

n.1 diamond tip PCD SPEED dia. 60 mm. (PCD SPEED dia.80mm.)
diamond
bit 80mm dia.
hydraulic
clamp for pipes and rotating water distributor
